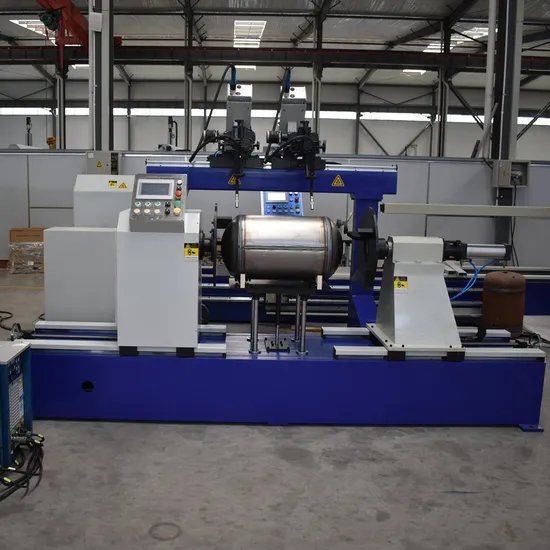

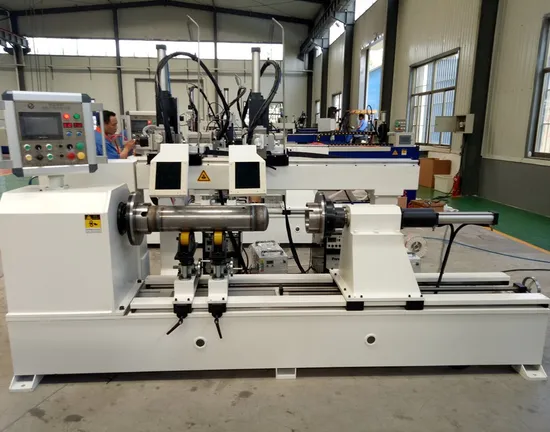

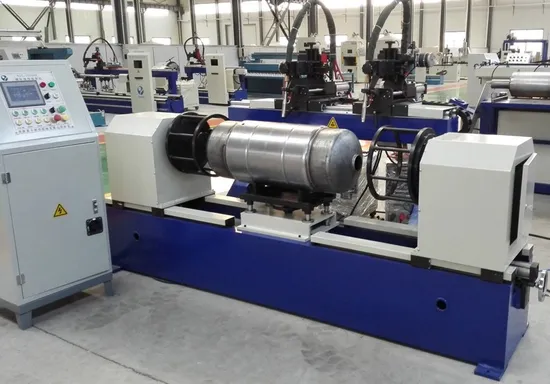

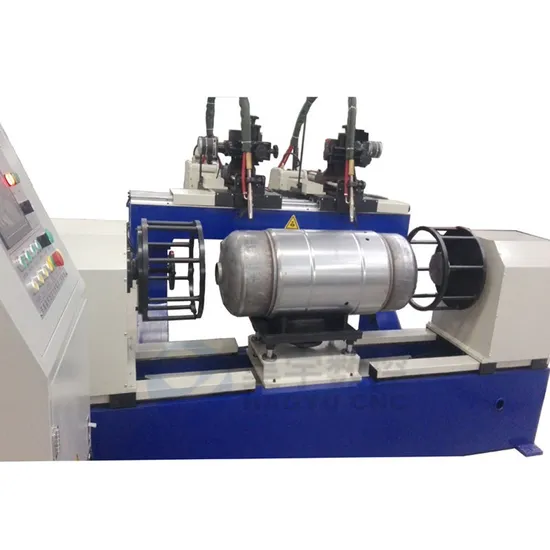

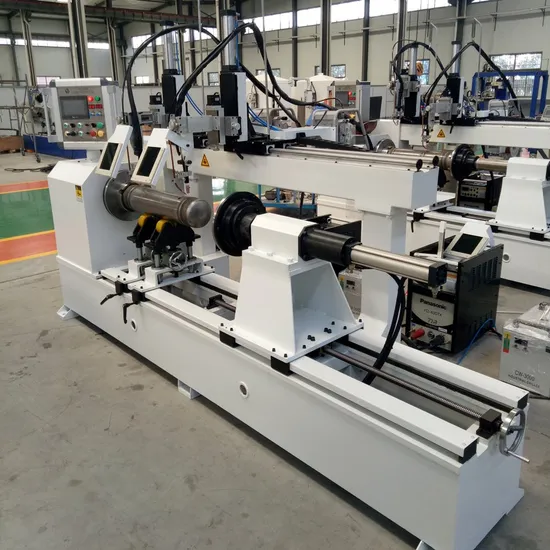

Automated PLC-controlled circumferential seam welder delivering high-efficiency, precision welds for stainless steel solar water and air tanks.
Features dual welding torches and power sources to significantly increase production efficiency.
Equipped with a Japan Omron PLC and HMI touch screen for precise control and easy parameter setting.
The welding torch, spindle box, and tailstock are longitudinally adjustable to accommodate various tank dimensions.
Utilizes an AC inverter for stepless speed adjustment, ensuring high reliability and consistent weld quality.
Pneumatic clamping and end-face positioning provide a secure and accurate setup for every workpiece.
Engineered for TIG, MIG, and SAW welding processes on carbon steel, stainless steel, and aluminum.
CE Certified, ensuring compliance with rigorous international safety and quality standards (HS Code: 8515319900).
Applicable Workpiece Diameter: 300mm - 500mm
Applicable Workpiece Length: 1000mm - 2000mm
Applicable Workpiece Thickness: 1.5mm - 3mm
Supported Materials: Carbon steel, stainless steel
Rotation Speed: 0.2 - 2rpm (Stepless Adjustment)
Control System: Omron PLC with 7" WEINVIEW HMI Touch Screen
